2.4ltr Killer NA
92mm x 92mm
Stage 3NA Short Block, FWD VE
Labor:
Disassemble Short Block
Hot Tank/Clean
Sand Blast Block
Remove/Retap/Replace Oil Port Plugs
Machine for Threaded Freeze Plugs
Sleeve Install
Resize Cylinders
Use Torque Plate During Honing
Step Deck
Resize Line Bore
Clean, Check, Polish, Balance Crank
Assemble Short Block
Parts:
Custom X-Forged Lightweight CP Pistons, 92mm 14.5:1 CR
Manley H-Beam Connecting Rods
ACL Race Bearings
Oil Pump, SR20VE
Darton Dry Sleeves
Mazworx SR20 Main Stud Kit (w/o girdle)
Mazworx Threaded/Oringed Freeze Plug Kit
Mazworx Front Oil Squirter, SR20
Misc Plugs
Stage 2S All Motor Cylinder Head
Labor:
Disassemble Head
Hot Tank/Clean
Remove/Drill/Tap/Replace Oil Port Plugs, SR Head
Remove/Replace Freeze Plugs, SR20VE Head, Threaded (Ex 16mm Std)|
Stage 2 CNC Intake Port
Stage 1 Hand Exhaust Port
92mm NA CNC Combustion Chamber
Remove, Reinstall, Ream Valve Guides
Valve Job, Multi Angle
Set Valve Lash, Tip
Resurface Head
Assemble Head
Parts:
Supertech Nissan 6mm Intake/Exhaust Valve Stem Seals
Supertech Titanium Retainers, SR20
Supertech Dual Valve Spring, SR20VE, 83lbs
Supertech Nissan 6mm Intake/Exhaust Valve Guides
Mazworx SR20VE Shimless Valve Set, +1 Intake/Std Exhaust
Mazworx Threaded/Oringed Freeze Plug Kit, Head, SR20VE
Kelford 184-EK Cams

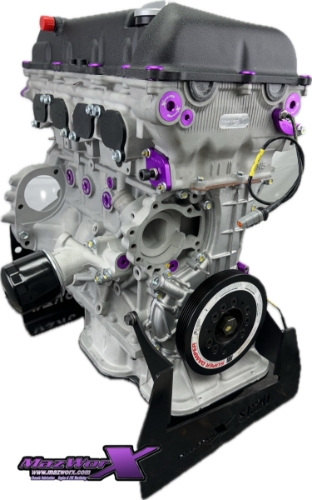

Long Block
Labor:
Assemble Long Block
Parts:
Mazworx/Apexi 92.5mm Head Gasket
Mazworx/ATI SR20 FWD Street Damper with 36-2 Trigger Wheel
Mazworx SR20 Crank/Cam Sensor Kit
Timing Chain Kit
Mazworx Timing Chain Tensioner
Mazwox SR20 Engine Bolt Kit, FWD VE
Mazworx VE Solenoid Block Off Plate
Kelford Adjustable Cam Gears
Valve Cover Powder Coating/Service
Mazworx SR20VE P11 Valve Cover Washer Kit
Misc Seals/Gaskets
Need:
Core SR20VE Long Block
