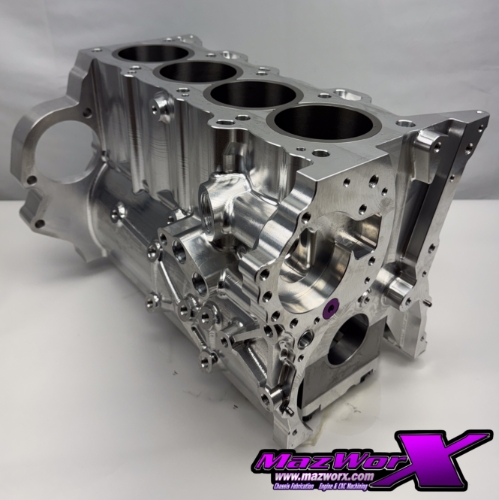

The Pro Drag Billet SR20VE FWD/AWD Block is our dry version of the Pro Street block. This block meets the needs drag racer wanting a solid block. With the OEM look, it directly swaps out with the OEM block. Constructed with 6061-T6 aluminum, it’s more durable than the OEM cast counterpart. Line bore stability is key when engine temps rise. That’s why it’s important to construct the main caps from steel. The 4140 chromoly main caps reduce line bore growth by half from room temperature to operating temperature compared to aluminum. For maximum strength, Darton Ductile Iron Dry Sleeves were the best solution. Design and made specifically for this application, the sleeves are easily replaceable in case of engine damage.
It features the following:
- Made in the USA
- Direct swap with OEM block
- High quality American made 6061-T6 Aluminum
- Uses 1/2" Head Studs and Main Studs
- May require clearancing for stroker kits as the pan rails have been narrowed for AWD oil pan
- Connection between the head stud and main stud stronger
- Utilizes Darton MID sleeves for optimum cooling
- Can use factory oil pump.
- -10an ORB Oil In/Out
- Main Caps are made from 4140 Chrome Moly Steel
- Come with 6061-T6 Girdle
- Fully serviceable at Mazworx
