This package is designed for Street Applications making 1200hp+.
Short Block, Stage 2.5
Labor:
Hot Tank/Clean
Sand Blast/Paint Block, Iron
Machine for Threaded Oil Port Plugs
Machine for Threaded Freeze Plug
Resurface Block, Inline
Resize Cylinder w/ Torque Plate
Resize Line Bore
Clean, Check, Polish, and Balance Crank
Assemble Short Block
Parts:
CP Heavy Duty Pistons 86.5mm 10.0:1 CR
Manley Turbo Tuff Rods CA625+
ACL Race Bearing Set
Mazworx Billet Main Caps
RSP/ARP CA625+ Main Studs
Mazworx Threaded/Oringed Small Plugs, M17x1
Mazworx Threaded/Oringed Freeze Plug Kit, Block
Misc Plug
Head, Stage 3
Labor:
Remove/Drill/Tap/Replace Oil Port Plugs
Plug EGR port
Stage 3 CNC Port and Combustion Chamber
Remove, Reinstall, Ream Valve Guides
Valve Job, Race
Set Valve Lash
Plug intake side water pipe
Machine Rear Water Pipe -10an ORB
Resurface Head
Assemble Head
Parts:
Supertech +1mm Intake Valves, +1mm Inconel Exhaust Valves
Supertech Bronze Valve Guides
Supertech Dual Valve Spring Kit, 118lbs
Kelford DLC Coated Shimless Buckets
Ferrea Valve Locks
Supertech Valve Seals
Kelford Cams, T202-D 272/278

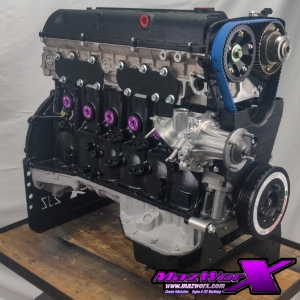

Long Block
Labor:
Long Block Assemble
Clean/Blast Misc Long Block Parts
Service/Powder Coat Valve Covers
Spin/Prime/Check oil pressure
Parts:
Kelford Adjustable Cam Gears
ATI Super Damper
ARP Damper Bolt
Gates Racing Timing Belt
ARP CA625+ Head Studs
RSP Billet Tensioner Bracket
Mazworx 2JZ Engine Bolt Kit
Mazworx Engine Shipping Bracket Kit, 2JZ
Lucas Oil SAE 30 Break-In Oil, Quart (5)
Wix Oil Filter
New OEM Parts & Seals
OEM Water Pump
OEM Oil Pump
Customer supplies:
Core GTE Long Block (Block can be GE, Head has to be GTE either VVTi or non-VVti)
